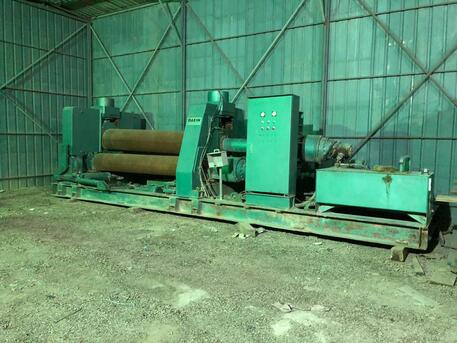

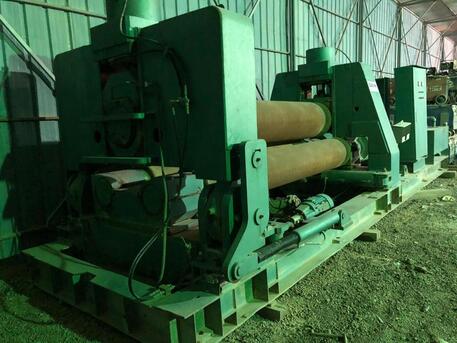

BENDING ROLLER Production Engineering Standard Technical Specifications for Bending Roll M/C Diameter of top upper roll: ?520 mm Diameter of lower middle roll: ?550 mm Diameter of side roll: ?500 mm Bending speed: 2500 mm/min Working pressure: 200 kg/cm2 Maximum bending pressure: 250 kg/cm2 Maximum driving pressure: 250 kg/cm2 Hydraulic pump (2 units): 130 liter Hydraulic drive motor: 125 hp / 4p Side cylinder: ?200 ST 500 mm Tilting cylinder: ?100 ST 600 mm Center cylinder: ?250 ST 150 mm Length: 7,100 mm Width: 3,000 mm Height: 3,250 mm Weight: 47,000 kg Oil tank capacity: 800 liter Power voltage: 440V / 3 phase Prices are negotiable
